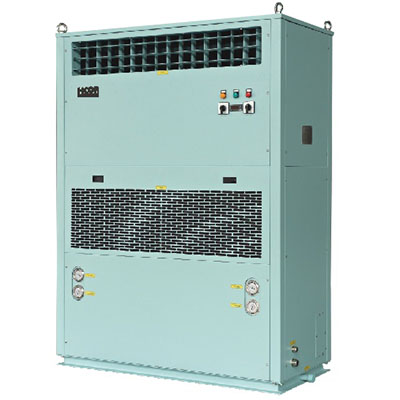

Marine Air Cooled Split AC Unit
Feature:
Compressor: Hermetic Scroll Type, Copeland;
Refrigerant: R407C;
Power: 440V/3Phase/60Hz
Air cooled condenser: copper tube copper fin, inner high efficient tube
Material of Frame: Mild-steel “C” Channel, Treated with Hot-dipped Galvanizing, and Zinc Coating;
Material of Casing: SUS 316 2B
Material of Base: SUS 346 2B
low noise design, reliable run, anti corrosive and complete protections, small volume and light weight
Sea Water Proof & Anti-Vibration;
Electronic Components with Well-known Brands;
Equipped with Danfoss Expansion Valves;
Indoor Unit: Cabinet, Ceiling, Ceiling Floor and Duct Type which can be determined by the clients;
Compressor: Hermetic Scroll Type, Copeland;
Refrigerant: R407C;
Power: 440V/3Phase/60Hz
Air cooled condenser: copper tube copper fin, inner high efficient tube
Material of Frame: Mild-steel “C” Channel, Treated with Hot-dipped Galvanizing, and Zinc Coating;
Material of Casing: SUS 316 2B
Material of Base: SUS 346 2B
low noise design, reliable run, anti corrosive and complete protections, small volume and light weight
Sea Water Proof & Anti-Vibration;
Electronic Components with Well-known Brands;
Equipped with Danfoss Expansion Valves;
Indoor Unit: Cabinet, Ceiling, Ceiling Floor and Duct Type which can be determined by the clients;
Technical Data:
Application:
It is widely used in all kinds of passenger ships, cargo ships, warships and offshore oil platfroms
| Model | KF(R)-70LW/(S)(D) | KF(R)-120LW/S(D) | KF(R)-160LW/S(D) | KF(R)-250LW/S(D) | ||
|---|---|---|---|---|---|---|
| Power supply | 220V/50Hz,60Hz,380V/50Hz,60Hz,440V/60Hz | |||||
| Refrigerant | R22,R407C,R410A,R404 | |||||
| Capacity | Cooling | Btu/h | 24000 | 42000 | 540000 | 900000 |
| W | 7000 | 12000 | 16000 | 25000 | ||
| Heating | Btu/h | 24000 | 42000 | 54000 | 90000 | |
| W | 7000 | 12000 | 17000 | 26000 | ||
| Rated input | Cooling | W | 2640 | 4530 | 6030 | 9800 |
| Heating | W | 2460 | 4560 | 5960 | 9700 | |
| Rated current | Cooling | A | 12 | 8.7 | 10.8 | 17.8 |
| Heating | A | 11.1 | 8.8 | 10.5 | 17.5 | |
| Noise | Indoor | dB (A) | ≤52 | ≤55 | ≤58 | ≤65 |
| Outdoor | dB (A) | ≤58 | ≤60 | ≤68 | ≤68 | |
| Air circulation | m3/h | 1200 | 2000 | 2300 | 3500 | |
| Dimensions | Net(mm) | Indoor | 1680×270×482 | 1900×350×605 | 1900×350×605 | 2100×450×805 |
| Outdoor | 907×345×605 | 980×425×1250 | 980×425×1250 | 900×625×1250 | ||
| Shipping(mm) | Indoor | 1755×580×355 | 1980×420×695 | 1980×420×695 | 2200×490×895 | |
| Outdoor | 975×385×670 | 1090×470×1290 | 1090×470×1290 | 990×690×1350 | ||
| Weight | Net(Kg) | Indoor | 40 | 57 | 65 | 90 |
| Outdoor | 43 | 117 | 145 | 200 | ||
| Shipping(Kg) | Indoor | 43 | 60 | 69 | 100 | |
| Outdoor | 50 | 126 | 153 | 220 | ||
Application:
It is widely used in all kinds of passenger ships, cargo ships, warships and offshore oil platfroms
