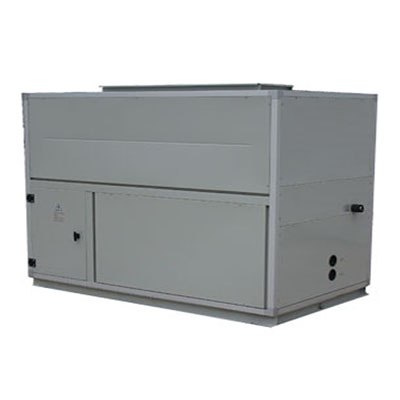

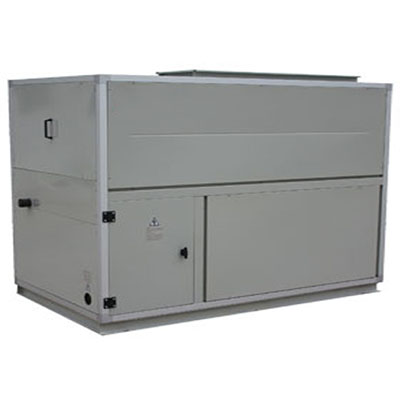

Sea water cooled package unit parameter
Model Parameter				MWL30	MWL50	MWL80	MWL100	MWL120	MWL150	MWL170	MWL200	MWL250	MWL300	MWL360	MWL500	MWL600	MWL7200
Unit Performance	Cooling Capacity (KW)	50HZ		9	15	22	30	36	45	54	60	72	90	108	144	180	216
		60HZ		10.5	18	28	36	43	54	64	72	86	114	129	172	215	258
	Electrical heating capacity (KW)	KW		6	9	15	18	21	24	24	36	42	54	60	84	98	120
	Air volume （m3/h)	50HZ		1600	2200	3300	4500	5000	6500	8000	9000	11000	12500	16000	21000	26000	32000
		60HZ		1900	2600	3800	5400	6000	7500	9600	10800	13200	15000	19600	25200	31000	38500
	Outside residual pressure (pa)	50HZ		80	100	180	230	250	300	380	400	450	500	550	600	600	600
		60HZ		100	125	225	280	315	380	510	580	650	720	750	800	850	850
Refrigerating Performance	Compressor	Type		Hermetic scroll
		Input power (KW)	50HZ	2.25	3.75	6	7.5	9	11	13.5	15	18	22	27	36	45	54
			60HZ	2.65	4.6	7.3	9.8	11	13.5	16.2	19.6	22	27	33	44	55	66
	Condenser	Type		Nickel white brass and S316 Stainless steel tube plate shell and tube
		Water Flow （m3/h)		2.3	3.5	5.5	6.8	8.8	11	13	14.6	17.1	20.5	216	28	40	42
		Pressure Loss (mH2O)		2.3	2.5	2.8	2.8	2.8	2.9	2.9	2.9	2.9	3	3.8	5.4	6.2	6.3
		Connection Tube Type in/mm		DN25	DN32	DN40	DN40	DN40	DN50	DN50	DN50	DN50	DN65	DN65	2×DN50	DN65+DN50	2×DN65
	Evaporater	Type		Sleeve-tube
		Fin Type		Bi-slotted  hydrophilic membrane aluminum fins
	Refrigerant	Working Fluid		R22/R407c
		Throttling Devices		Thermal expansion valve
		Refrigerant charge (Kg)		2	3.5	3×2	3.5×2	3.7×2	7+3.5	7+3.7	7×2	7.5×2	7.5×2+3.5	7.5×3	7.5×4	7.5×5	7.5×6
Fan Performance	Fan	Type		Low Noise Centrifugal type
		Driven Method		Direct Drive			Belt Drive
	Motor Power		KW	0.3	0.55	0.75	1.1	1.5	2.2	4	4	5.5	5.5	7.5	11	18.5	22
	Noise		dB (A)	50	52	53	53	55	56	56	58	60	62	65	68	72	73
Dimension L×W×H(mm)	Dudt Type			750×550 ×1600	1100×550 ×1600	1250×600 ×1600	1450×600 ×1680	1450×800 ×1800	1650×800 ×1800	1900×800 ×1980	2000×900 ×1980	2200×950 ×2200	2000×1100 ×1900	2500×1400 ×1900	3000×1600 ×2050	3200×1600 ×2200	3500×1700 ×2200
	Straight-blown surface mounted			750×550 ×1850	1100×550 ×1850	1250×600 ×1850	1450×600 ×1950	1450×800 ×2050	1650×800 ×2050	1900×800 ×2200	2000×900 ×1980	\	\	\	\	\	\
Weight	Kg			200	220	250	330	380	500	556	620	660	720	800	1080	1260	1465
1.Chilled sea-water inlet temperature:32℃,Chilled sea-water outlet temperature: 37℃,Indoor air dry bulb temperature: 27℃,wet bulb temperature: 19.5℃. 2.*represent option

Application:
It is widely used in all kinds of passenger ships, cargo ships, warships and offshore oil platfroms
