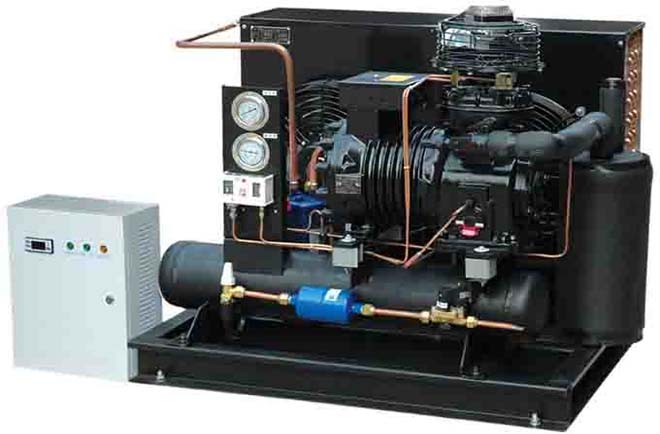

Shenyang Copeland Condensing Unit wanted-Choose Open Type Condensing Unit Manufacturer

Products Features

1. Widely applied to supermarket store, meat producing store, commercial cold room, food processing, dairy products cooling, medicine stores, seeding processing store, medical lab etc.

2. Condenser with copper pipe plus aluminum fin type for high efficiency ans stabilization

3. Low noise, low vibration, stable working with copeland compressors.

4. Convenient to enginner and repair with installation stop valves.

Technical parameter

Open type Shenyang Copeland condensing unit parameter(middle-high temperature type)

Model	Supply power	Cooling capacity(W)	Air cooled condenser spec.				Collecting pipe spec.		External dimensions
Model	Supply power	Cooling capacity(W)	Heat transfer area	Total air volume	Fan diameter	Motor capacity	Suction pipe	Exhaust pipe	Length	Width	Height
S31	380V/3PH/50Hz	5670	22	3000	400	190	22	12	700	600	580
S41		8350	33	3000	400	2*190	22	12	1050	710	580
S51		9640	49	5000	400	2*190	22	12	1050	710	580
S81		17500	80	6000	400	4*190	28	16	1050	800	980
S101		19190	100	10000	400	4*190	28	16	1050	800	1280
S151		27700	130	14000	450	4*190	35	22	1050	800	1280
4YG20		32300	150	14000	450	4*250	42	22	1250	800	1280
4S251GV type		42250	200	14000	500	3*420	54	22	2120	1100	1680
4S301GV type		48500	270	20000	550	3*550	54	22	2300	1100	1680
6S351GV type		63400	300	27000	600	3*800	54	28	2450	1100	1680
6S401GV type		72800	350	36000	550	4*550	54	28
6S501GV type		86300	410	45000	600	4*800	54	35

Air cooled middle low temperature type

Model	Supply power	Cooling capacity(W)	Air cooled condenser spec.				Collecting pipe spec.		External dimensions
Model	Supply power	Cooling capacity(W)	Heat transfer area	Total air volume	Fan diameter	Motor capacity	Suction pipe	Exhaust pipe	Length	Width	Height
S31	380V/3PH/50Hz	4960	22	3000	400	190	22	10	700	600	580
S41		6160	28	3000	350	2*160	22	12	1050	710	580
S51		7280	42	5000	400	2*190	28	12	1050	710	580
S81		11880	60	6000	450	2*250	35	16	1050	800	680
S101		13800	80	6000	400	4*190	35	16	1050	800	1280
S151		21100	120	10000	400	4*190	42	22	1050	800	1280
4S2010		24450	150	14000	400	4*190	54	22	1250	800	1280
6S251D-V type		31700	180	14000	600	2*800	54	22	1750	950	1600
6S321D-V type		36700	240	20000	500	3*420	54	22	2300	1100	1680
6S401D-V type		44100	300	27000	600	3*800	54	28	2450	1100	1680

Widely applied to supermarket store, meat producing store, commercial cold room, food processing, dairy products cooling, medicine stores, seeding processing store, medical lab etc.
